Implements quick checkpointing through delta-checkpoint trees which store state-deltas in a compact format. State is retrieved through a sparta tree from ArchDatas associated with any TreeNodes. More...

#include <FastCheckpointer.hpp>

Inheritance diagram for sparta::serialization::checkpoint::FastCheckpointer:

[legend]

Collaboration diagram for sparta::serialization::checkpoint::FastCheckpointer:

[legend]

Public Types
typedef DeltaCheckpoint< storage::VectorStorage >	checkpoint_type

Public Types inherited from sparta::serialization::checkpoint::Checkpointer
typedef Checkpoint::tick_t	tick_t
	tick_t Tick type to which checkpoints will refer

typedef Checkpoint::chkpt_id_t	chkpt_id_t
	tick_t Tick type to which checkpoints will refer

Public Member Functions
Construction & Initialization
	FastCheckpointer (TreeNode &root, Scheduler *sched=nullptr)
	FastCheckpointer Constructor.

	~FastCheckpointer ()
	Destructor.

Attributes
uint32_t	getSnapshotThreshold () const noexcept
	Returns the next-shapshot threshold.

void	setSnapshotThreshold (uint32_t thresh) noexcept
	Sets the snapshot threshold.

Checkpointing Actions & Queries
void	deleteCheckpoint (chkpt_id_t id) override
	Deletes a checkpoint by ID.

void	loadCheckpoint (chkpt_id_t id) override
	Loads state from a specific checkpoint by ID.

bool	checkpointExists (chkpt_id_t id)
	Queries a specific checkpoint by ID.

std::vector< chkpt_id_t >	getCheckpointsAt (tick_t t) const override
	Gets all checkpoints taken at tick t on any timeline.

std::vector< chkpt_id_t >	getCheckpoints () const override
	Gets all checkpoint IDs available on any timeline sorted by tick (or equivalently checkpoint ID).

uint32_t	getNumCheckpoints () const noexcept override
	Gets the current number of checkpoints having valid IDs.

uint32_t	getNumSnapshots () const noexcept
	Gets the current number of snapshots with valid IDs.

uint32_t	getNumDeltas () const noexcept
	Gets the current number of delta checkpoints with valid IDs.

uint32_t	getNumDeadCheckpoints () const noexcept
	Gets the curent number of checkpoints (delta or snapshot) withOUT valid IDs.

std::deque< chkpt_id_t >	getCheckpointChain (chkpt_id_t id) const override
	Debugging utility which gets a deque of checkpoints representing a chain starting at the checkpoint head and ending at the checkpoint specified by id. Ths results can contain checkpoint_type::UNIDENTIFIED_CHECKPOINT to represent temporary deleted checkpoints in the chain.

checkpoint_type *	findLatestCheckpointAtOrBefore (tick_t tick, chkpt_id_t from) override
	Finds the latest checkpoint at or before the given tick starting at the from checkpoint and working backward. If no checkpoints before or at tick are found, returns nullptr.

checkpoint_type *	findInternalCheckpoint (chkpt_id_t id)
	Gets a checkpoint through findCheckpoint interface casted to the type of Checkpoint subclass used by this class.

Printing Methods
std::string	stringize () const override
	Returns a string describing this object.

void	traceValue (std::ostream &o, chkpt_id_t id, const ArchData *container, uint32_t offset, uint32_t size) override
	Forwards debug/trace info onto checkpoint by ID.

Public Member Functions inherited from sparta::serialization::checkpoint::Checkpointer
	Checkpointer (TreeNode &root, sparta::Scheduler *sched=nullptr)
	Checkpointer Constructor.

virtual	~Checkpointer ()
	Destructor.

const TreeNode &	getRoot () const noexcept
	Returns the root associated with this checkpointer.

TreeNode &	getRoot () noexcept
	Non-const variant of getRoot.

const Scheduler *	getScheduler () const noexcept
	Returns the sheduler associated with this checkpointer.

uint64_t	getTotalMemoryUse () const noexcept
	Computes and returns the memory usage by this checkpointer at this moment including any framework overhead.

uint64_t	getContentMemoryUse () const noexcept
	Computes and returns the memory usage by this checkpointer at this moment purely for the checkpoint state being held.

uint64_t	getTotalCheckpointsCreated () const noexcept
	Returns the total number of checkpoints which have been created by this checkpointer. This is unrelated to the current number of checkpoints in existance. Includes the head checkpoint if created.

void	createHead ()
	Creates a head without taking an identified checkpoint. Cannot already have a head.

chkpt_id_t	createCheckpoint (bool force_snapshot=false)
	Creates a checkpoint at the given scheduler's current tick with a new checkpoint ID some point after the current checkpoint (see getCurrentID). If the current checkpoint already has other next checkpoints, the new checkpoint will be an alternate branch of the current checkpoint. This snapshot may be stored as a full snapshot if the checkpointer requires it, or if the snapshot threshold is exceeded, or if the force_snapshot argument is true Current tick will be read from scheduler (if not null) and must be >= the head checkpoint's tick. The current tick must also be >= the current checkpoints tick (See getCurrenTick).

void	forgetCurrent ()
	Forgets the current checkpoint and current checkpoint (resetting to the head checkpoint) so that checkpoints can be taken at a different time without assuming simulation state continutiy with this checkpointers. This is ONLY to be used by a simulator IFF another checkpointer restores state at another cycle or the simulator resets but this checkpointer's tree is still expected to exist.

Checkpoint *	findCheckpoint (chkpt_id_t id) noexcept
	Finds a checkpoint by its ID.

virtual bool	hasCheckpoint (chkpt_id_t id) const noexcept
	Tests whether this checkpoint manager has a checkpoint with the given id.

const Checkpoint *	getHead () const noexcept
	Returns the head checkpoint which is equivalent to the earliest checkpoint taken.

chkpt_id_t	getHeadID () const noexcept
	Returns the checkpoint ID of the head checkpoint (if it exists) which is equivalent to the earliest checkpoint taken.

chkpt_id_t	getCurrentID () const
	Returns the current checkpoint ID. This is mainly a debugging utility as the current ID changes when adding, deleting, and loading checkpoints based on whether the checkpoints take were deltas or snapshots. A correct integration of the checkpointer by a simulator should not depend on this method for behavior decisions.

tick_t	getCurrentTick () const
	Gets the tick number of the current checkpoint (see getCurrentID). This is the tick number of the latest checkpoint either saved or written through this checkpointer. The next checkpoint taken will be on the same chain as a checkpoint taken at this tick.

void	dumpList (std::ostream &o) const
	Dumps this checkpointer's flat list of checkpoints to an ostream with a newline following each checkpoint.

void	dumpData (std::ostream &o) const
	Dumps this checkpointer's data to an ostream with a newline following each checkpoint.

void	dumpAnnotatedData (std::ostream &o) const
	Dumps this checkpointer's data to an ostream with annotations between each ArchData and a newline following each checkpoint description and each checkpoint data dump.

void	dumpTree (std::ostream &o) const
	Dumps this checkpointer's tree to an ostream with a line for each branch. Printout timescale is not relevant. Multi-line printouts for deep branches will be difficult to read.

void	dumpBranch (std::ostream &o, const Checkpoint *chkpt, uint32_t indent, uint32_t pos, std::deque< uint32_t > &continues) const
	Recursively dumps one branch (and sub-branches) to an ostream with a line for each branch.

Protected Member Functions
void	cleanupChain_ (checkpoint_type *d)
	Delete given checkpoint and all contiguous previous checkpoints which can be deleted (See checkpoint_type::canDelete). This is the only place where checkpoint objects are actually freed (aside from destruction) and it ensures that they will not disrupt the checkpoint delta chains. All other deletion is simply flagging and re-identifying checkpoints.

bool	recursForwardFindAlive_ (checkpoint_type *d) const
	Look forward to see if any future checkpoints depend on d.

checkpoint_type *	findCheckpoint_ (chkpt_id_t id) noexcept override
	Attempts to find a checkpoint within this checkpointer by ID.

const checkpoint_type *	findCheckpoint_ (chkpt_id_t id) const noexcept override
	const variant of findCheckpoint_

void	dumpCheckpointNode_ (const Checkpoint *chkpt, std::ostream &o) const override
	Implements Checkpointer::dumpCheckpointNode_.

Protected Member Functions inherited from sparta::serialization::checkpoint::Checkpointer
const std::vector< ArchData * > &	getArchDatas () const
	Returns ArchDatas enumerated by this Checkpointer for iteration when saving or loading checkpoint data.

Checkpoint *	getHead_ () noexcept
	Non-const variant of getHead_.

const Checkpoint *	getHead_ () const noexcept
	Gets the head checkpoint. Returns nullptr if none created yet.

void	setHead_ (Checkpoint *head)
	Sets the head checkpointer pointer to head for the first time.

Checkpoint *	getCurrent_ () const noexcept
	Gets the current checkpointer pointer. Returns nullptr if there is no current checkpoint object.

void	setCurrent_ (Checkpoint *current)
	Sets the current checkpoint pointer.

Additional Inherited Members
Protected Attributes inherited from sparta::serialization::checkpoint::Checkpointer
std::map< chkpt_id_t, std::unique_ptr< Checkpoint > >	chkpts_
	All checkpoints sorted by ascending tick number (or equivalently ascending checkpoint ID since both are monotonically increasing)

Scheduler *const	sched_
	Scheduler whose tick count will be set and read. Cannnot be updated after first checkpoint without bad side effects. Keeping this const for simplicity.

Detailed Description

Implements quick checkpointing through delta-checkpoint trees which store state-deltas in a compact format. State is retrieved through a sparta tree from ArchDatas associated with any TreeNodes.

With the goal of checkpoint saving and loading speed, this class does not allow persistent checkpoint files (saved between session) because the data format subject to change and very sensitive to the exact device tree configuration

A checkpoint tree may look something like the following, where each checkpoint is shown by its simulation tick number (not ID)

* t=0 (head/snapshot) --> t=100 +-> t=300
*                     |
*                     `-> t=320 --> t=400 +-> t=500
*                     |                   `-> t=430
*                     `-> t=300
*

The procedure for using the FastCheckpointer is generally:

Create SPARTA Tree
Construct FastCheckpointer
Finalize SPARTA Tree
Initialize simulation
FastCheckpointer::createHead

Then:

<run simulation>
FastCheckpointer::createCheckpoint
<run simulation>
FastCheckpointer::loadCheckpoint
repeat in any order necessary

Todo:

Implement reverse delta storage for backward checkpoint loading

Tune ArchData line size based on checkpointer performance

More profiling

Compression

Saving to disk using a templated checkpoint object storage class (allowing for non-binary)

Definition at line 65 of file FastCheckpointer.hpp.

Member Typedef Documentation

◆ checkpoint_type

typedef DeltaCheckpoint<storage::VectorStorage> sparta::serialization::checkpoint::FastCheckpointer::checkpoint_type

Definition at line 69 of file FastCheckpointer.hpp.

Constructor & Destructor Documentation

◆ FastCheckpointer()

sparta::serialization::checkpoint::FastCheckpointer::FastCheckpointer	(	TreeNode &	root,
		Scheduler *	sched = `nullptr`
	)

inline

FastCheckpointer Constructor.

Parameters

root	TreeNode at which checkpoints will be taken. This cannot be changed later. This does not necessarily need to be a RootTreeNode. Before the first checkpoint is taken, this node must be finalized (see sparta::TreeNode::isFinalized). At this point, the node does not need to be finalized
sched	Scheduler to read and restart on checkpoint restore (if not nullptr)

Definition at line 90 of file FastCheckpointer.hpp.

◆ ~FastCheckpointer()

sparta::serialization::checkpoint::FastCheckpointer::~FastCheckpointer ( )

inline

Destructor.

Frees all checkpoint data

Definition at line 104 of file FastCheckpointer.hpp.

Here is the call graph for this function:

Member Function Documentation

◆ checkpointExists()

bool sparta::serialization::checkpoint::FastCheckpointer::checkpointExists ( chkpt_id_t id )

inline

Queries a specific checkpoint by ID.

Definition at line 238 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ cleanupChain_()

void sparta::serialization::checkpoint::FastCheckpointer::cleanupChain_ ( checkpoint_type * d )

inlineprotected

Delete given checkpoint and all contiguous previous checkpoints which can be deleted (See checkpoint_type::canDelete). This is the only place where checkpoint objects are actually freed (aside from destruction) and it ensures that they will not disrupt the checkpoint delta chains. All other deletion is simply flagging and re-identifying checkpoints.

Parameters

d	Checkpoint to attempt to delete first. Function will then move through each previous checkpoint until reaching head.

Postcondition: Head checkpoint will never be deleted by this function

Note: Never flags any new checkpoints as deleted

Todo:: Support compression

Todo:: canDelete is recursive at worst and might benefit from optimization

Definition at line 439 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ deleteCheckpoint()

void sparta::serialization::checkpoint::FastCheckpointer::deleteCheckpoint ( chkpt_id_t id )

inlineoverridevirtual

Deletes a checkpoint by ID.

Parameters

id	ID of checkpoint to delete. Must not be checkpoint_type::UNIDENTIFIED_CHECKPOINT and must not be equal to the ID of the head checkpoint.

Exceptions

CheckpointError if this manager has no checkpoint with given id. Test with hasCheckpoint first. If id == checkpoint_type::UNIDENTIFIED_CHECKPOINT, always throws. Throws if id == getHeadID(). Head cannot be deleted

Internally, this deletion may be effective-only and actual data may still exist in an incaccessible form as part of the checkpoint delta-tree implementation.

If the current checkpoint is deleted, current will be updated back along the current checkpoints previous-delta chain until a non deleted checkpoint is found. This will become the new current checkpoint

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 169 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ dumpCheckpointNode_()

void sparta::serialization::checkpoint::FastCheckpointer::dumpCheckpointNode_	(	const Checkpoint *	chkpt,
		std::ostream &	o
	)		const

inlineoverrideprotectedvirtual

Implements Checkpointer::dumpCheckpointNode_.

Reimplemented from sparta::serialization::checkpoint::Checkpointer.

Definition at line 578 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ findCheckpoint_() [1/2]

const checkpoint_type * sparta::serialization::checkpoint::FastCheckpointer::findCheckpoint_ ( chkpt_id_t id ) const

inlineoverrideprotectedvirtualnoexcept

const variant of findCheckpoint_

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 567 of file FastCheckpointer.hpp.

◆ findCheckpoint_() [2/2]

checkpoint_type * sparta::serialization::checkpoint::FastCheckpointer::findCheckpoint_ ( chkpt_id_t id )

inlineoverrideprotectedvirtualnoexcept

Attempts to find a checkpoint within this checkpointer by ID.

Parameters

id	Checkpoint ID to search for

Returns: Pointer to found checkpoint with matchind ID. If not found, returns nullptr.

Todo:: Faster lookup?

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 556 of file FastCheckpointer.hpp.

◆ findInternalCheckpoint()

checkpoint_type * sparta::serialization::checkpoint::FastCheckpointer::findInternalCheckpoint ( chkpt_id_t id )

inline

Gets a checkpoint through findCheckpoint interface casted to the type of Checkpoint subclass used by this class.

Definition at line 387 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ findLatestCheckpointAtOrBefore()

checkpoint_type * sparta::serialization::checkpoint::FastCheckpointer::findLatestCheckpointAtOrBefore	(	tick_t	tick,
		chkpt_id_t	from
	)

inlineoverridevirtual

Finds the latest checkpoint at or before the given tick starting at the from checkpoint and working backward. If no checkpoints before or at tick are found, returns nullptr.

Parameters

tick	Tick to search for
from	Checkpoint at which to begin searching for a tick. Must be a valid checkpoint known by this checkpointer. See hasCheckpoint.

Returns: The latest checkpoint with a tick number less than or equal to the tick argument. Returns nullptr if no checkpoints before tick were found. It is possible for the checkpoint identified by from could be returned.

Warning: This is not a high-performance method. Generally, a client of this interface knows a paticular ID.

Exceptions

CheckpointError if from does not refer to a valid checkpoint.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 364 of file FastCheckpointer.hpp.

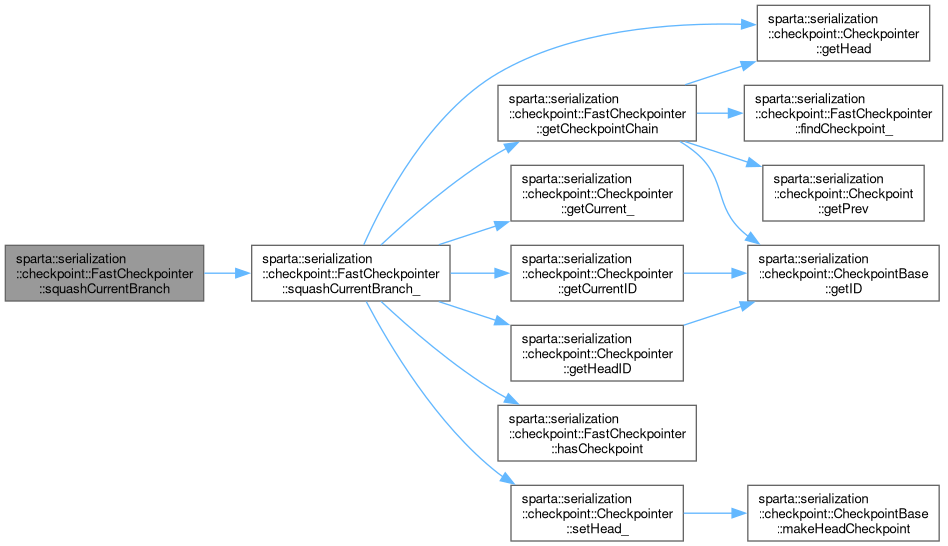

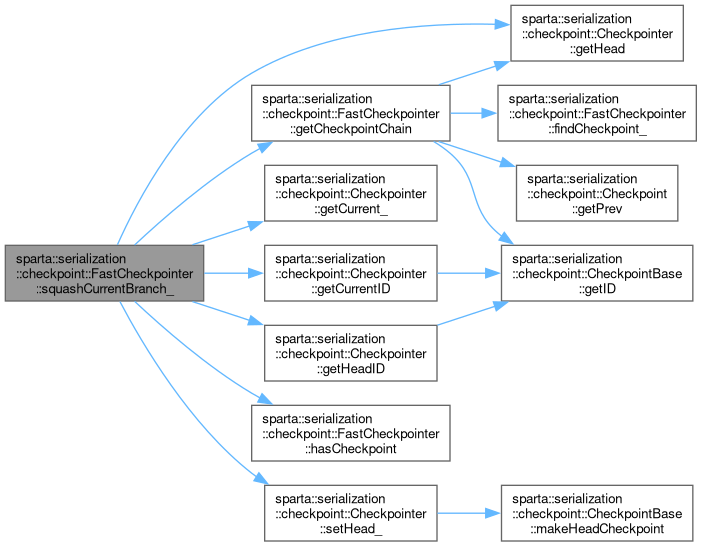

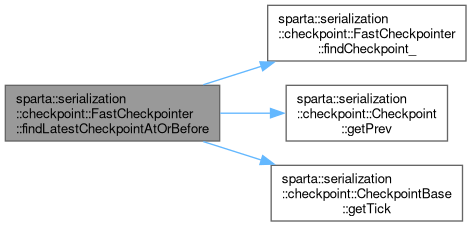

Here is the call graph for this function:

◆ getCheckpointChain()

std::deque< chkpt_id_t > sparta::serialization::checkpoint::FastCheckpointer::getCheckpointChain ( chkpt_id_t id ) const

inlineoverridevirtual

Debugging utility which gets a deque of checkpoints representing a chain starting at the checkpoint head and ending at the checkpoint specified by id. Ths results can contain checkpoint_type::UNIDENTIFIED_CHECKPOINT to represent temporary deleted checkpoints in the chain.

Parameters

id	ID of checkpoint that terminates the chain

Returns: dequeue of checkpoint IDs where the front is always the head and the back is always the checkpoint described by id. If there is no checkpoint head, returns an empty result

Exceptions

CheckpointError if id does not refer to a valid checkpoint.

Note: Makes a new vector of results. This should not be called in the critical path.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 331 of file FastCheckpointer.hpp.

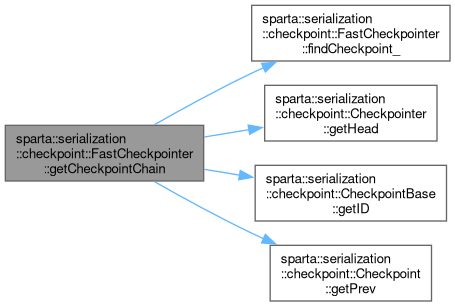

Here is the call graph for this function:

◆ getCheckpoints()

std::vector< chkpt_id_t > sparta::serialization::checkpoint::FastCheckpointer::getCheckpoints ( ) const

inlineoverridevirtual

Gets all checkpoint IDs available on any timeline sorted by tick (or equivalently checkpoint ID).

Returns: vector of valid checkpoint IDs (never checkpoint_type::UNIDENTIFIED_CHECKPOINT)

Note: Makes a new vector of results. This should not be called in the critical path.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 275 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ getCheckpointsAt()

std::vector< chkpt_id_t > sparta::serialization::checkpoint::FastCheckpointer::getCheckpointsAt ( tick_t t ) const

inlineoverridevirtual

Gets all checkpoints taken at tick t on any timeline.

Parameters

t	Tick number at which checkpoints should found.

Returns: vector of valid checkpoint IDs (never checkpoint_type::UNIDENTIFIED_CHECKPOINT)

Note: Makes a new vector of results. This should not be called in the critical path.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 255 of file FastCheckpointer.hpp.

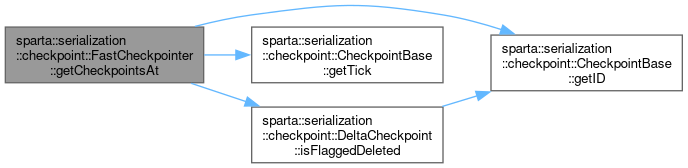

Here is the call graph for this function:

◆ getNumCheckpoints()

uint32_t sparta::serialization::checkpoint::FastCheckpointer::getNumCheckpoints ( ) const

inlineoverridevirtualnoexcept

Gets the current number of checkpoints having valid IDs.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 290 of file FastCheckpointer.hpp.

◆ getNumDeadCheckpoints()

uint32_t sparta::serialization::checkpoint::FastCheckpointer::getNumDeadCheckpoints ( ) const

inlinenoexcept

Gets the curent number of checkpoints (delta or snapshot) withOUT valid IDs.

Definition at line 312 of file FastCheckpointer.hpp.

◆ getNumDeltas()

uint32_t sparta::serialization::checkpoint::FastCheckpointer::getNumDeltas ( ) const

inlinenoexcept

Gets the current number of delta checkpoints with valid IDs.

Definition at line 304 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ getNumSnapshots()

uint32_t sparta::serialization::checkpoint::FastCheckpointer::getNumSnapshots ( ) const

inlinenoexcept

Gets the current number of snapshots with valid IDs.

Definition at line 297 of file FastCheckpointer.hpp.

◆ getSnapshotThreshold()

uint32_t sparta::serialization::checkpoint::FastCheckpointer::getSnapshotThreshold ( ) const

inlinenoexcept

Returns the next-shapshot threshold.

This represents the distance between two checkpoints required for the checkpointer to automatically place a snapshot checkpoint instead of a delta. A threshold of 0 or 1 results in all checkpoints being snapshots. A value of 10 results in every 10th checkpoint being a snapshot. Explicit snapshot creation using createCheckpoint can interrupt and restart this pattern.

This value is a performance/space tradeoff knob.

Definition at line 133 of file FastCheckpointer.hpp.

◆ loadCheckpoint()

void sparta::serialization::checkpoint::FastCheckpointer::loadCheckpoint ( chkpt_id_t id )

inlineoverridevirtual

Loads state from a specific checkpoint by ID.

Note: Does not delete checkpoints. Checkpoints must be explicitly deleted by deleteCheckpoint

Exceptions

CheckpointError if id does not refer to checkpoint that exists or if checkpoint could not be load.

Warning: If checkpoint fails during loading for reasons other than an invalid ID, the simulation state could be corrupt

Postcondition: current checkpoint is now the checkpoint specified by id; If this checkpointer has was constructed with a pointer to a scheduler, sets that scheduler's current tick to the checkpoint's tick using Scheduler::restartAt

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 208 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ recursForwardFindAlive_()

bool sparta::serialization::checkpoint::FastCheckpointer::recursForwardFindAlive_ ( checkpoint_type * d ) const

inlineprotected

Look forward to see if any future checkpoints depend on d.

Parameters

d	checkpoint to inspect and recursively search

Returns: true if the current checkpoint or any live checkpoints are hit in the search. Search terminates on each branch when a snapshot or the end of the branch is reached. The branch to inspect (d) will not be checked itself since the point is to determine which branches down-chain depend on it.

Definition at line 517 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ setSnapshotThreshold()

void sparta::serialization::checkpoint::FastCheckpointer::setSnapshotThreshold ( uint32_t thresh )

inlinenoexcept

Sets the snapshot threshold.

See also: getSnapshotThreshold

Definition at line 139 of file FastCheckpointer.hpp.

◆ stringize()

std::string sparta::serialization::checkpoint::FastCheckpointer::stringize ( ) const

inlineoverridevirtual

Returns a string describing this object.

Reimplemented from sparta::serialization::checkpoint::Checkpointer.

Definition at line 401 of file FastCheckpointer.hpp.

Here is the call graph for this function:

◆ traceValue()

void sparta::serialization::checkpoint::FastCheckpointer::traceValue	(	std::ostream &	o,
		chkpt_id_t	id,
		const ArchData *	container,
		uint32_t	offset,
		uint32_t	size
	)

inlineoverridevirtual

Forwards debug/trace info onto checkpoint by ID.

Implements sparta::serialization::checkpoint::Checkpointer.

Definition at line 410 of file FastCheckpointer.hpp.

Here is the call graph for this function:

The documentation for this class was generated from the following file:

/github/workspace/sparta/sparta/serialization/checkpoint/FastCheckpointer.hpp

Public Types

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ checkpoint_type

Constructor & Destructor Documentation

◆ FastCheckpointer()

◆ ~FastCheckpointer()

Member Function Documentation

◆ checkpointExists()

◆ cleanupChain_()

◆ deleteCheckpoint()

◆ dumpCheckpointNode_()

◆ findCheckpoint_() [1/2]

◆ findCheckpoint_() [2/2]

◆ findInternalCheckpoint()

◆ findLatestCheckpointAtOrBefore()

◆ getCheckpointChain()

◆ getCheckpoints()

◆ getCheckpointsAt()

◆ getNumCheckpoints()

◆ getNumDeadCheckpoints()

◆ getNumDeltas()

◆ getNumSnapshots()

◆ getSnapshotThreshold()

◆ loadCheckpoint()

◆ recursForwardFindAlive_()

◆ setSnapshotThreshold()

◆ stringize()

◆ traceValue()
