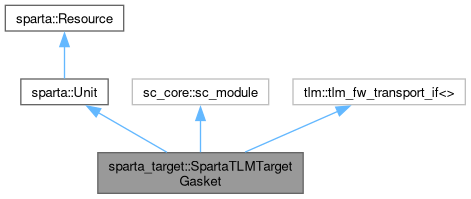

Inheritance diagram for sparta_target::SpartaTLMTargetGasket:

[legend]

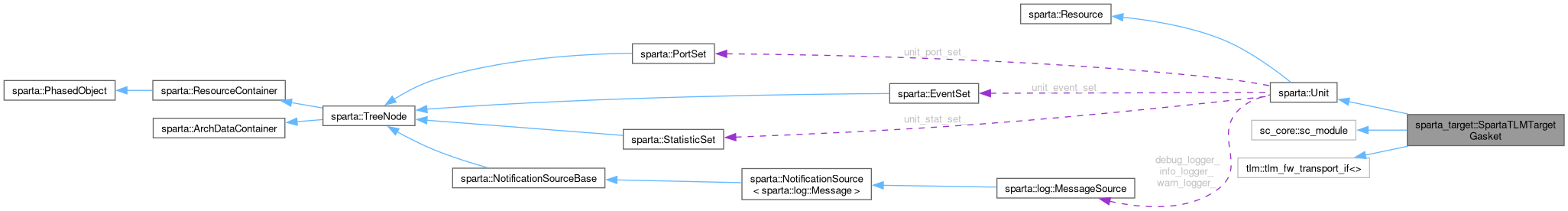

Collaboration diagram for sparta_target::SpartaTLMTargetGasket:

[legend]

Classes
class	SpartaTLMTargetGasketParams

Public Member Functions
	SC_HAS_PROCESS (SpartaTLMTargetGasket)
	Construction of the Sparta TLM gasket.

	SpartaTLMTargetGasket (sparta::TreeNode node, const SpartaTLMTargetGasketParams params, sc_core::sc_module_name module_name=scName[nextID])

void	setTreeNode (sparta::TreeNode *treeNodePtr)

tlm::tlm_target_socket &	getMemorySocket ()

Public Member Functions inherited from sparta::Unit
	Unit (TreeNode *rc, const std::string &name)
	Construct unit with a ResouceContainer.

	Unit (TreeNode *rc)
	Construct unit with a ResouceContainer.

virtual	~Unit ()
	Destroy!

void	setAutoPrecedence (bool auto_p)
	Turn off auto-precedence.

PortSet *	getPortSet ()
	Return the port set.

EventSet *	getEventSet ()
	Return the event set.

StatisticSet *	getStatisticSet ()
	Return the stat set.

Public Member Functions inherited from sparta::Resource
	Resource (TreeNode *rc)
	Construct resource with a resource container.

	Resource (TreeNode *rc, const std::string &name)
	Construct resource with a specific name and resource container.

	Resource (const std::string &name, const Clock *clk)
	Construct a Resource with the given name and clock having NO association with a resource container. This constructor is reserved for free-standing resources owned by other resources (not containers [TreeNodes])

virtual	~Resource ()
	Destroy!

const Clock *	getClock () const

Scheduler *	getScheduler (const bool must_exist=true) const

std::string	getName () const

TreeNode *	getContainer ()
	Gets the TreeNode (container) for this resource (if any)

const TreeNode *	getContainer () const
	Gets the TreeNode (container) for this resource (if any)

ResourceContainer *	getResourceContainer ()
	Gets the ResourceContainer for this resource (if any)

const ResourceContainer *	getResourceContainer () const
	Gets the ResourceContainer for this resource (if any)

virtual void	addLink (TreeNode *node, const std::string &label)

virtual void	activateLink (const std::string &label)

	Resource (const Resource &)=delete
	Disallow copying.

Resource &	operator= (const Resource &)=delete

Static Public Attributes
static constexpr char	name [] = "mem_tlm_gasket"

static constexpr char	scName [2][20] = {"mem_tlm_gasket0", "mem_tlm_gasket1"}

Static Public Attributes inherited from sparta::Unit
static constexpr const char *	INFO_LOG = "info"

static constexpr const char *	WARN_LOG = log::categories::WARN_STR

static constexpr const char *	DEBUG_LOG = log::categories::DEBUG_STR

Static Protected Attributes
static int	nextID = 0

Additional Inherited Members
Protected Member Functions inherited from sparta::Unit
virtual void	onBindTreeEarly_ () override

virtual void	onBindTreeLate_ () override
	Dump a dot.

Protected Attributes inherited from sparta::Unit
sparta::PortSet	unit_port_set_
	The Unit's Ports.

sparta::EventSet	unit_event_set_
	The Unit's event set.

sparta::StatisticSet	unit_stat_set_
	The Unit's statistic set.

log::MessageSource	info_logger_
	Default info logger.

log::MessageSource	warn_logger_
	Default warn logger.

log::MessageSource	debug_logger_
	Default debug logger.

Detailed Description

Definition at line 18 of file SpartaTLMTargetGasket.hpp.

Constructor & Destructor Documentation

◆ SpartaTLMTargetGasket()

sparta_target::SpartaTLMTargetGasket::SpartaTLMTargetGasket	(	sparta::TreeNode *	node,
		const SpartaTLMTargetGasketParams *	params,
		sc_core::sc_module_name	module_name = scName[nextID] )

inline

Definition at line 62 of file SpartaTLMTargetGasket.hpp.

Member Function Documentation

◆ getMemorySocket()

tlm::tlm_target_socket & sparta_target::SpartaTLMTargetGasket::getMemorySocket ( )

inline

Definition at line 94 of file SpartaTLMTargetGasket.hpp.

◆ SC_HAS_PROCESS()

sparta_target::SpartaTLMTargetGasket::SC_HAS_PROCESS ( SpartaTLMTargetGasket )

Construction of the Sparta TLM gasket.

Parameters

node	The Sparta tree node
params	The Gasket parameters
module_name	The module name – must be a variable that lives through construction.

Explanation of the third parameter "module_name":

SystemC uses a global stack to determine the latest module (based on its name) being constructed for the tlm_fw_transport_if. If this variable is a temporary, it will destruct BEFORE initializing the tlm_fw_transport_if and nullify the "current module being constructed."

You'll get this cryptic message:

"Error: (E122) sc_export specified outside of module: export 'tlm_base_target_socket_0' (sc_object)

To get around this nonsense, the module name (as a sc_core::sc_module_name) must live throughout the construction of the module.

Member Data Documentation

◆ name

char sparta_target::SpartaTLMTargetGasket::name[] = "mem_tlm_gasket"

staticconstexpr

Definition at line 26 of file SpartaTLMTargetGasket.hpp.

◆ nextID

int sparta_target::SpartaTLMTargetGasket::nextID = 0

staticprotected

Definition at line 23 of file SpartaTLMTargetGasket.hpp.

◆ scName

char sparta_target::SpartaTLMTargetGasket::scName[2][20] = {"mem_tlm_gasket0", "mem_tlm_gasket1"}

staticconstexpr

Definition at line 27 of file SpartaTLMTargetGasket.hpp.

The documentation for this class was generated from the following files:

/github/workspace/sparta/example/SystemC/common/sparta-target/SpartaTLMTargetGasket.hpp
/github/workspace/sparta/example/SystemC/1_phase/sparta-target/SpartaTLMTargetGasket.cpp
/github/workspace/sparta/example/SystemC/2_phase/sparta-target/SpartaTLMTargetGasket.cpp
/github/workspace/sparta/example/SystemC/4_phase/sparta-target/SpartaTLMTargetGasket.cpp
