Single checkpoint object interface with a tick number and an ID unique to the owning Checkpointer instance. More...

#include <CheckpointBase.hpp>

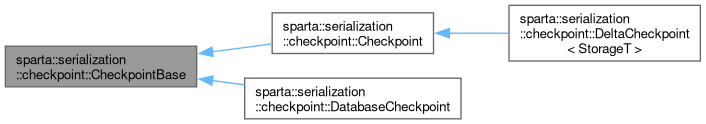

Inheritance diagram for sparta::serialization::checkpoint::CheckpointBase:

[legend]

Public Types
Local Types
typedef sparta::Scheduler::Tick	tick_t
	tick_t Tick type to which checkpoints will refer

typedef uint64_t	chkpt_id_t
	tick_t Checkpoint ID type to which checkpoints will refer

Public Member Functions
Checkpoint Actions
virtual void	load (const std::vector< ArchData * > &dats)=0
	Attempts to restore this checkpoint state to the simulation state (ArchData) objects given to this Checkpoint at construction.

tick_t	getTick () const noexcept
	Returns the tick number at which this checkpoint was taken.

chkpt_id_t	getID () const noexcept
	Returns the ID of this checkpoint.

virtual chkpt_id_t	getPrevID () const =0
	Get the ID of our previous checkpoint. Returns UNIDENTIFIED_CHECKPOINT only for the head checkpoint.

virtual std::vector< chkpt_id_t >	getNextIDs () const =0
	Returns next checkpoint following *this. May be an empty vector if there are no later checkpoints.

virtual std::string	getDeletedRepr () const
	Gets the representation of this deleted checkpoint as part of a checkpoint chain (if that checkpointer supports deletion)

Static Public Attributes
static const chkpt_id_t	MIN_CHECKPOINT = 0
	Indicates the smallest valid checkpoint id.

static const chkpt_id_t	UNIDENTIFIED_CHECKPOINT = ~(chkpt_id_t)0
	Indicates unidentified checkpoint (could mean 'invalid' or 'any') depending on context.

Protected Member Functions
void	setID_ (chkpt_id_t id)
	Sets the checkpoint ID.

Construction & Initialization
	CheckpointBase (const CheckpointBase &)=delete
	Not copy constructable.

CheckpointBase &	operator= (const CheckpointBase &)=delete
	Non-assignable.

	CheckpointBase (CheckpointBase &&)=delete
	Not move constructable.

CheckpointBase &	operator= (CheckpointBase &&)=delete
	Not move assignable.

virtual	~CheckpointBase ()=default
	Destructor.

template<typename Archive >
void	serialize (Archive &ar, const unsigned int)
	boost::serialization support

virtual std::string	stringize () const
	Returns a string describing this object.

virtual void	dumpData (std::ostream &o) const =0
	Writes all checkpoint raw data to an ostream.

virtual uint64_t	getTotalMemoryUse () const noexcept=0
	Returns memory usage by this checkpoint including any framework data structures.

virtual uint64_t	getContentMemoryUse () const noexcept=0
	Returns memory usage by this checkpoint solely for the checkpointed content.

	CheckpointBase (chkpt_id_t id, tick_t tick)

Detailed Description

Single checkpoint object interface with a tick number and an ID unique to the owning Checkpointer instance.

A subclass of Checkpointer is expected to hold or refer to some checkpoint data in memory or on disk at construction which can be restored with load()

Definition at line 25 of file CheckpointBase.hpp.

Member Typedef Documentation

◆ chkpt_id_t

uint64_t sparta::serialization::checkpoint::CheckpointBase::chkpt_id_t

tick_t Checkpoint ID type to which checkpoints will refer

Definition at line 37 of file CheckpointBase.hpp.

◆ tick_t

sparta::Scheduler::Tick sparta::serialization::checkpoint::CheckpointBase::tick_t

tick_t Tick type to which checkpoints will refer

Definition at line 34 of file CheckpointBase.hpp.

Constructor & Destructor Documentation

◆ CheckpointBase()

sparta::serialization::checkpoint::CheckpointBase::CheckpointBase	(	chkpt_id_t	id,
		tick_t	tick )

inlineprotected

Note: Should only be constructed by subclasses

Definition at line 75 of file CheckpointBase.hpp.

Member Function Documentation

◆ dumpData()

virtual void sparta::serialization::checkpoint::CheckpointBase::dumpData ( std::ostream & o ) const

pure virtual

Writes all checkpoint raw data to an ostream.

Parameters

o	ostream to which raw data will be written

Note: No newlines or other extra characters will be appended

Implemented in sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ getContentMemoryUse()

virtual uint64_t sparta::serialization::checkpoint::CheckpointBase::getContentMemoryUse ( ) const

pure virtualnoexcept

Returns memory usage by this checkpoint solely for the checkpointed content.

Implemented in sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ getDeletedRepr()

virtual std::string sparta::serialization::checkpoint::CheckpointBase::getDeletedRepr ( ) const

inlinevirtual

Gets the representation of this deleted checkpoint as part of a checkpoint chain (if that checkpointer supports deletion)

Reimplemented in sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

Definition at line 166 of file CheckpointBase.hpp.

◆ getID()

chkpt_id_t sparta::serialization::checkpoint::CheckpointBase::getID ( ) const

inlinenoexcept

Returns the ID of this checkpoint.

Note: Number has no sequential meaning - it is effectively a random ID.

Definition at line 148 of file CheckpointBase.hpp.

◆ getNextIDs()

virtual std::vector< chkpt_id_t > sparta::serialization::checkpoint::CheckpointBase::getNextIDs ( ) const

pure virtual

Returns next checkpoint following *this. May be an empty vector if there are no later checkpoints.

Implemented in sparta::serialization::checkpoint::Checkpoint, sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ getPrevID()

virtual chkpt_id_t sparta::serialization::checkpoint::CheckpointBase::getPrevID ( ) const

pure virtual

Get the ID of our previous checkpoint. Returns UNIDENTIFIED_CHECKPOINT only for the head checkpoint.

Implemented in sparta::serialization::checkpoint::Checkpoint, sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ getTick()

tick_t sparta::serialization::checkpoint::CheckpointBase::getTick ( ) const

inlinenoexcept

Returns the tick number at which this checkpoint was taken.

Definition at line 141 of file CheckpointBase.hpp.

◆ getTotalMemoryUse()

virtual uint64_t sparta::serialization::checkpoint::CheckpointBase::getTotalMemoryUse ( ) const

pure virtualnoexcept

Returns memory usage by this checkpoint including any framework data structures.

Implemented in sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ load()

virtual void sparta::serialization::checkpoint::CheckpointBase::load ( const std::vector< ArchData * > & dats )

pure virtual

Attempts to restore this checkpoint state to the simulation state (ArchData) objects given to this Checkpoint at construction.

Implemented in sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

◆ serialize()

template<typename Archive >

void sparta::serialization::checkpoint::CheckpointBase::serialize	(	Archive &	ar,
		const unsigned int	)

inline

boost::serialization support

Definition at line 93 of file CheckpointBase.hpp.

◆ setID_()

void sparta::serialization::checkpoint::CheckpointBase::setID_ ( chkpt_id_t id )

inlineprotected

Sets the checkpoint ID.

Definition at line 177 of file CheckpointBase.hpp.

◆ stringize()

virtual std::string sparta::serialization::checkpoint::CheckpointBase::stringize ( ) const

inlinevirtual

Returns a string describing this object.

Reimplemented in sparta::serialization::checkpoint::DatabaseCheckpoint, and sparta::serialization::checkpoint::DeltaCheckpoint< StorageT >.

Definition at line 101 of file CheckpointBase.hpp.

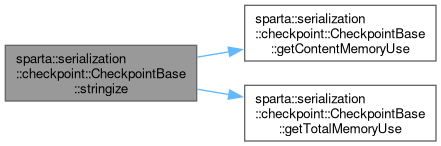

Here is the call graph for this function:

Member Data Documentation

◆ MIN_CHECKPOINT

const chkpt_id_t sparta::serialization::checkpoint::CheckpointBase::MIN_CHECKPOINT = 0

static

Indicates the smallest valid checkpoint id.

Definition at line 45 of file CheckpointBase.hpp.

◆ UNIDENTIFIED_CHECKPOINT

const chkpt_id_t sparta::serialization::checkpoint::CheckpointBase::UNIDENTIFIED_CHECKPOINT = ~(chkpt_id_t)0

static

Indicates unidentified checkpoint (could mean 'invalid' or 'any') depending on context.

Definition at line 51 of file CheckpointBase.hpp.

The documentation for this class was generated from the following file:

/github/workspace/sparta/sparta/serialization/checkpoint/CheckpointBase.hpp
